OSD AchilleΣ PLUS

OSD FOR AKK

You will recieve a PDF file with instructions for the OSD MOD of AKK  into your email

OSD FOR Eachine PRO58

Eachine Pro58 have a very powerful Processor , Which can do amazing things. One of those things is the Revolutionary OSD. Now you can have OSD from your module and never take off your Goggles.

The OSD needs Two resistors. a 820 ohm and 240 ohm also a tiny cable furthermore pin3, counted from the upper position, has to be removed (cut), preferable size for crystal clear installation is SMD sizes (1206 or 0805) or normal size resistor (classic size not SMD) , while the OSD is enabled the Fatshark Button will be disabled.

CAUTION ,

  • Do this MOD at your own risk. We have no responsibillity if you damage your module or goggles.
  • OSD for DOM v1 and prior(Fatshark RCV922) is not compatible at the moment
  • Latest firmware first, mod after that.

HOW TO INSTALL

If you want to add OSD , you have to follow those steps.

  1. Upload the Latest AchilleΣ PLUS
  2. follow this image connection diagram

View post on imgur.com

The Module will look like this

View post on imgur.com

View post on imgur.com

View post on imgur.com

Alternative way.

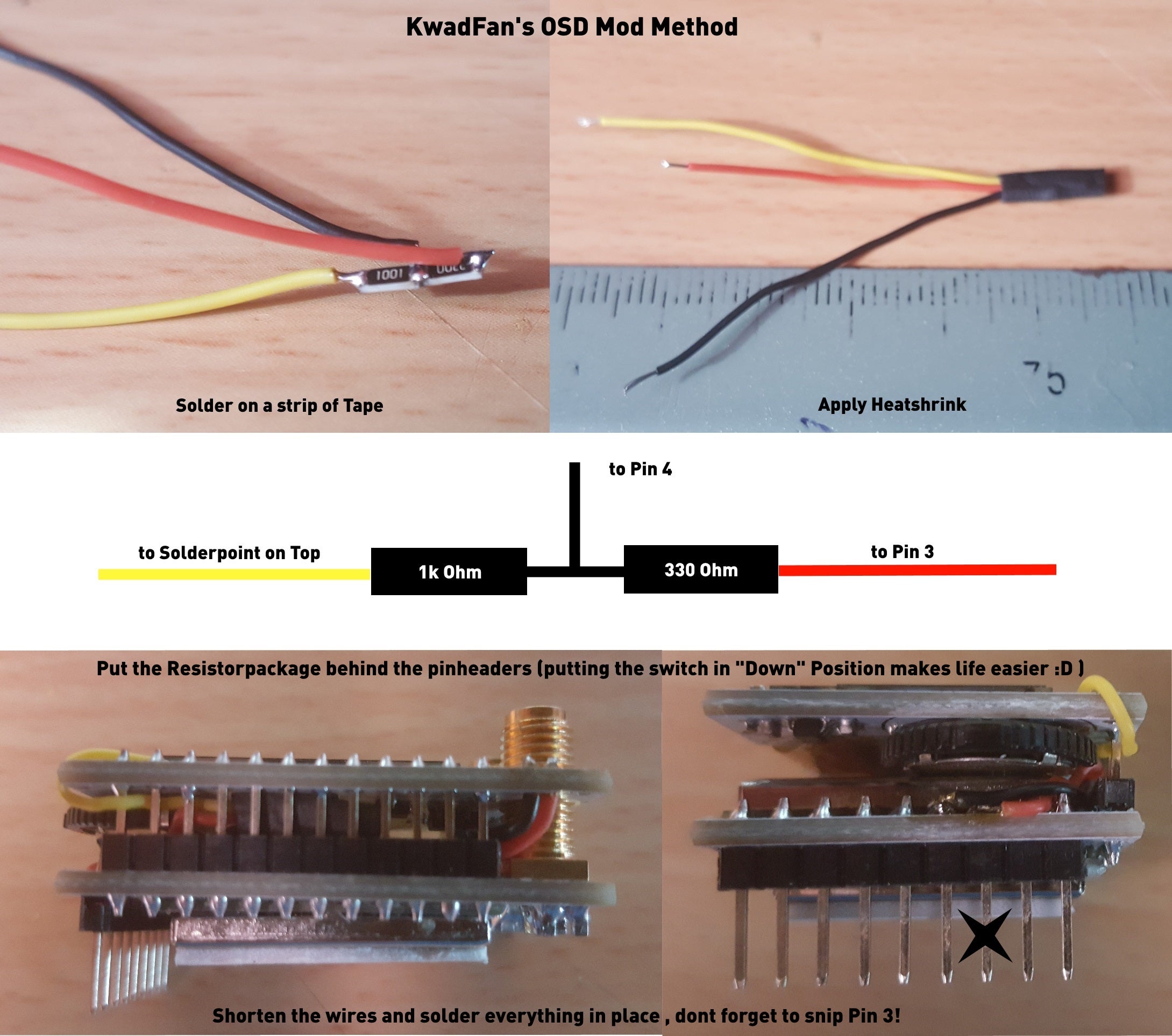

Phillip is using Bigger Resistor Values, he is using 1k instead of 820 ohm and 330 ohm instead of 240 ohm , and they are working good also. CAUTION dont use smaller values than 820 ohm and 240 ohm

Another Great Idea from kreidler with Molex Picoblade

And this is an excellent way to make the mod super easily by Stephan We.

Last Step Goto Settings and set Enable OSD : to ON

OSD FOR REALACC PRO PLUS OSD.

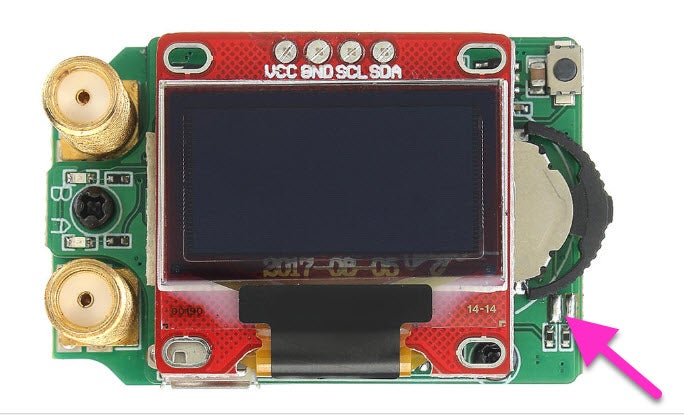

in order the OSD for the Realacc Pro plus module to work , you have to brigde those two pads.

Eachine Pro58 boards seems that is currently using the correct CPU! Revision "X"

AKk is not supported at all don't send emails for AKK
